FITS ALL YEARS KRX 1000 AND KRX 1000 4

Overhaul Your KRX 1000
SuperATV’s 3” Long Travel Kit is a total suspension replacement that makes your Kawasaki Teryx KRX 1000 wider and more capable. With bulletproof suspension components, heavy-duty tie rods, UHMW bushings, steel sleeves, and Rhino 2.0 Axles, it’ll feel like you’ve got yourself a brand new side-by-side. This kit adds 3” to each side of your KRX, increasing your width by 6” overall. It also makes room for tires as large as 34”. You’re left with a reinforced and gusseted suspension that’s capable of handling abuse from the most gnarly trails.

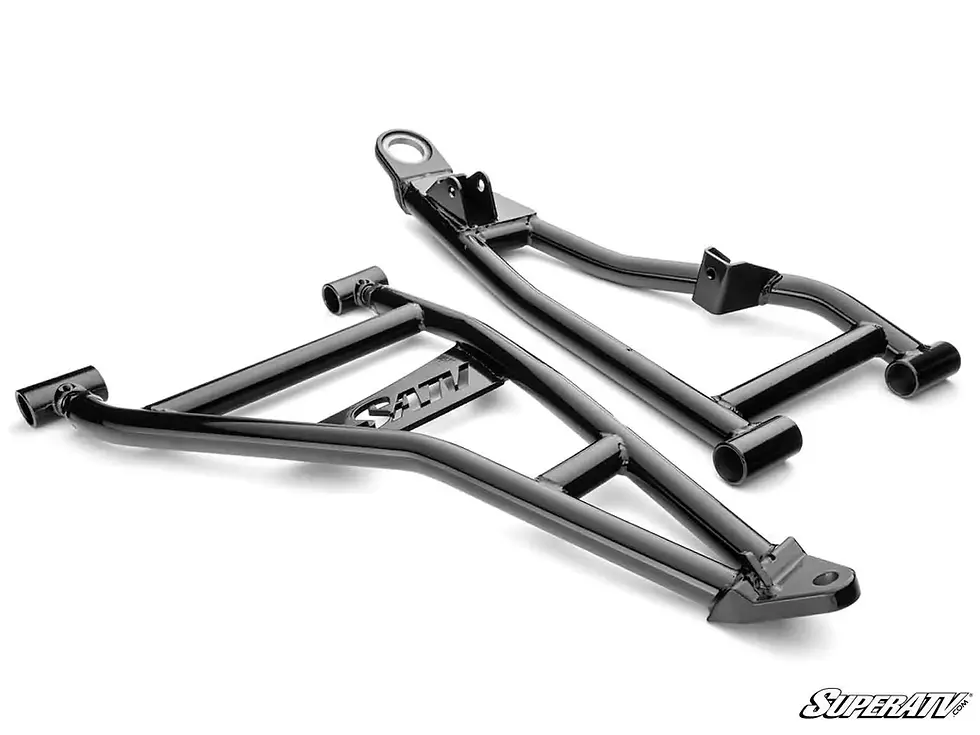

Super-Strong Suspension Arms
This Kawasaki Teryx long travel kit comes complete with high-strength A-arms, high-clearance steel trailing arms, and unbeatable boxed high-clearance radius arms. Our tubed A-arms feature fully adjustable pivot blocks so you can dial in your camber for perfect ride quality. The boxed radius arms, which are also adjustable, have hefty 5/8” heim joints. Both are preadjusted to stock specs right out of the box. You also get trailing arms that are made with 1/8” steel plating and internal gussets for long-lasting durability. All suspension components have a bend for additional ground clearance and are covered by an unbeatable lifetime warranty.

Need Better Ball Joints? We’ll Install Them!
This kit works with your stock ball joints, but you also have the option to purchase our Heavy-Duty 4340 or Super-Duty 300M Ball Joints when you check out. Adding an awesome set of ball joints is a no-brainer, but what if we told you we’ll do all the work, too? Don’t worry about buying a press, removing your old ball joints, and then pressing them back in. Buy our ball joints and we’ll install them to your arms at no extra cost.

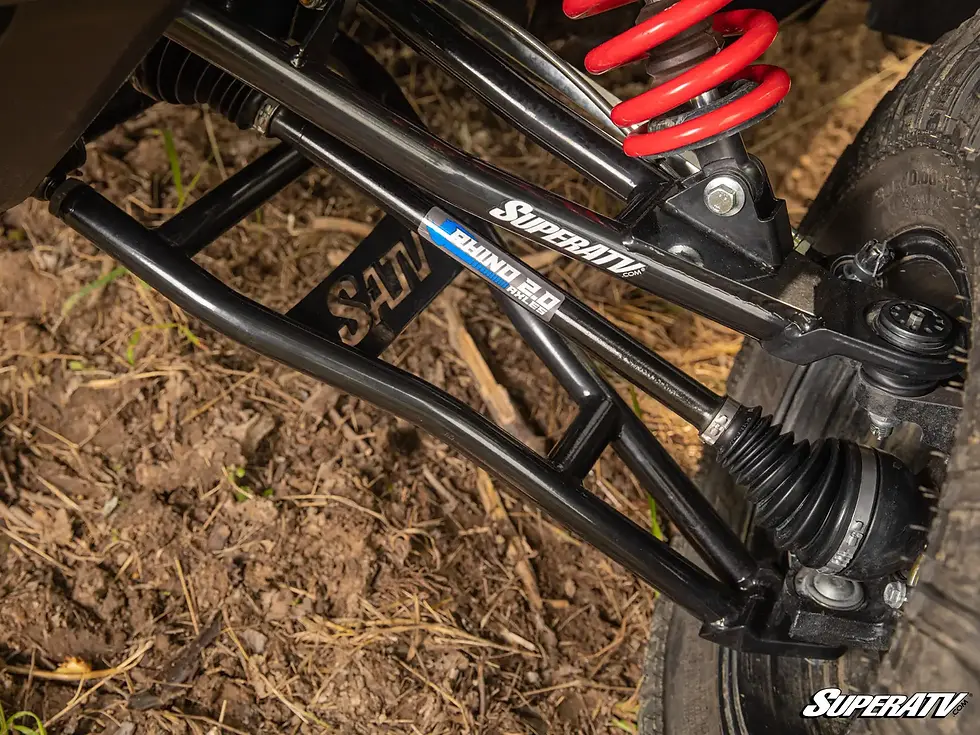

Rhino 2.0 Axles and Tie Rod Kit Included
No long travel kit would be complete without a set of bulletproof Rhino 2.0 Axles. Their maximized CV joints and 4340 chromoly steel deliver all the strength you need for hardcore off-roading. You also get a heavy-duty tie rod kit that features 6061-T6 billet aluminum shafts and a flashy hex design. Our tie rods give you a stronger steering system while also adding head-turning good looks to your KRX.

NOTE: Limit straps and track bars not included. Kit utilizes stock ball joints.

Kit Includes:
(4) High-clearance tubed A-arms
(2) High-clearance rear trailing arms
(2) High-clearance boxed radius arms
(4) Rhino 2.0 Axles
(2) Heavy-duty tie rods and tie rod ends
All required bushings and sleeves
Extended brake lines
All required hardware


Increases width by 6” overall
